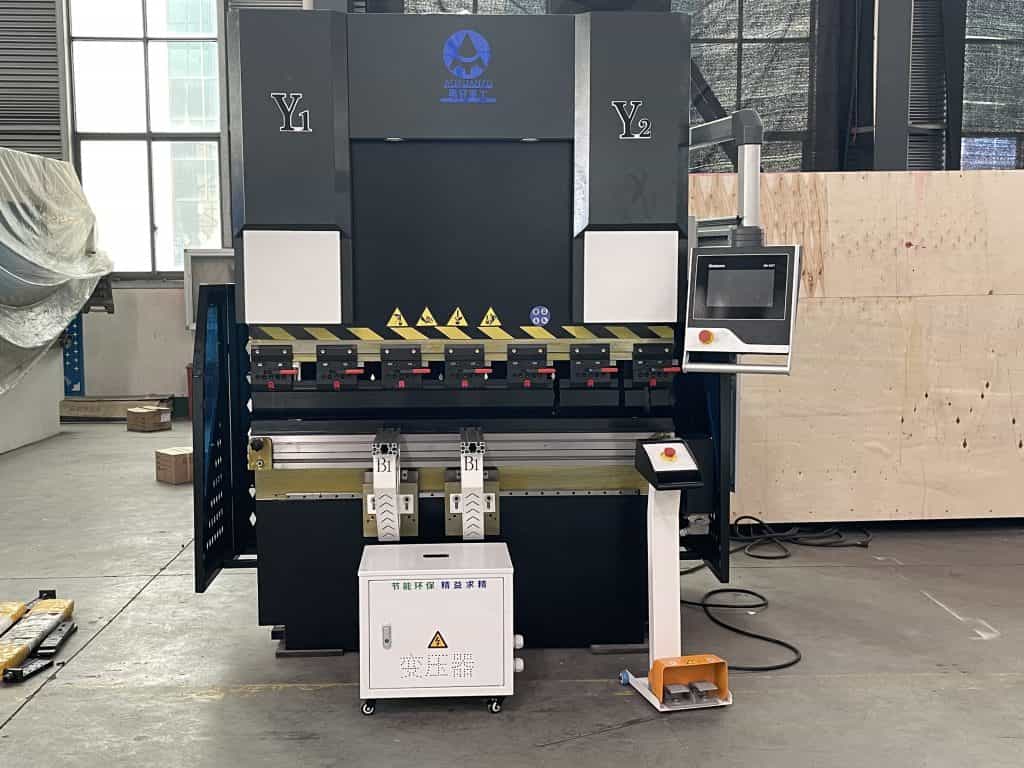

Crowning plays a crucial role in ensuring straight and accurate bends on press brakes. It compensates for deflection that naturally occurs in the beam (ram) and table of the press brake when load is applied, allowing for consistent, repeatable forming results.
Why Crowning Is Essential
Without proper compensation for machine deflection, the workpiece will likely experience deformation, especially in the center, when bent along the full length of the press brake. This issue becomes more pronounced in larger, high-tonnage machines (such as those 8 feet or longer, with a capacity of 80 tons or more), but can also affect shorter workpieces. Press brake crowning systems are designed to keep the bend angle consistent across the entire part by offsetting deflection, ensuring accuracy in both short and long bending applications.
In today’s manufacturing environment, characterized by short batch runs, complex parts, and quick turnaround times, crowning enhances efficiency, repeatability, and part accuracy. It is particularly helpful in high-tonnage applications and challenging materials, such as high-tensile-strength steels, where straight bends are harder to achieve.
How Crowning Works
Most modern press brakes are equipped with a servo-hydraulic system, which uses a closed-loop control system to precisely position the ram. Position sensors at each end of the beam monitor the movement and alignment of the beam. The machine’s control system processes this data to adjust the position of the beam with accuracy up to 0.01 mm.
However, press brakes tend to deflect under load, particularly in the middle of the machine, causing the center of the part to have a more obtuse bend than the ends. Without intervention, this deflection would result in inconsistent bend angles.
To counteract this, a crowning system generates an opposite force that “curves” the beam and table, compensating for the deflection. This ensures the ram and table remain parallel, allowing for precise bending over the entire length of the part.
The Evolution of Crowning
Since the late 1970s, crowning has evolved significantly. Initially, manufacturers would pre-grind a curve into the table to offset about 75% of machine deflection. Today, programmable crowning systems have made the process much more advanced. Operators simply input the sheet thickness, material tensile strength, die opening, and part length into the control system, which automatically calculates the necessary deflection adjustments for each bend.
Types of Crowning Systems
There are two main types of crowning systems: Hydraulic Crowning and CNC Mechanical Wedge-Style Crowning.
-
Hydraulic Crowning:
- This system uses hydraulic pressure to adjust the cylinders during the bend stroke, compensating for machine deflection.
- Some brake press hydraulic systems use only a center cylinder or a three-cylinder system, while others may cover up to 60% of the bed length.
- The amount of crowning applied depends on the cylinder positions, but the hydraulic cylinders share a common hydraulic line, meaning no single cylinder can apply the full crowning force.
-
CNC Mechanical Wedge-Style Crowning:
- This system consists of two rows of wedges (one fixed, one movable) across the bed length. The wedge system allows for compensation over the full length of the bed.
- When activated, the movable wedge creates a curve with a higher slope at the center of the bed, gradually decreasing towards the ends.
- Wedge-style crowning systems can be specifically machined for the press brake bed, offering exceptional accuracy and repeatability (±0.01 mm), especially for high-tonnage applications.
- These systems allow for real-time adjustments via the CNC control, which minimizes production downtime.
Retrofit and Application Considerations
Crowning systems are most commonly used on press brakes with 80 tons or more and 8 feet in length. While crowning can also be applied to smaller press brakes, its necessity depends on the length of the press brake table and the material being formed. Longer machines and higher tonnages experience greater deflection, making crowning essential.
Wedge-style crowning systems can often be retrofitted to existing press brakes, even those without built-in crowning systems. These retrofits can increase machine capability, allowing it to handle larger or heavier components, which might otherwise require manual adjustments or specialized setups.
Benefits of Crowning
- Accuracy: By compensating for deflection, crowning systems ensure a consistent bend angle across the length of the part, reducing scrap and improving the quality of formed parts.
- Efficiency: Automated systems reduce the need for manual intervention, minimizing setup time and errors.
- Operator Skill: With a crowning system in place, even operators with less experience can achieve consistent results, as the system compensates for deflection in real-time.
Challenges and Considerations
While crowning systems address deflection, they cannot solve issues caused by poor tooling, such as misaligned punches and dies. Non-precision or worn-out tooling will lead to inconsistent bend angles, regardless of the crowning system used. Therefore, regular maintenance and the use of precision-ground tooling are crucial for ensuring consistent bend quality.
Advanced Applications in High-Tensile Materials
Crowning is especially critical in applications involving high-tensile-strength materials (e.g., S1100, S1300, Hardox®, and Armox®), which require more force to bend and experience more springback. These materials are increasingly used in large applications, such as the construction of heavy machinery or structural components. Crowning compensates for the added stress of bending these materials, ensuring high-precision bends in larger parts.
Tandem and Multi-Press Brake Systems
For tandem, tridem, or quadem press brakes (machines that combine multiple press brakes), crowning systems become even more critical. These systems ensure synchronization between press brakes, allowing for consistent movement across the entire length of the part. Some advanced systems incorporate dual crowning tables for greater accuracy and flexibility.
Conclusion
As manufacturing demands continue to evolve, crowning systems have become an essential component for achieving high-accuracy bending, especially in high-tonnage applications and when working with challenging materials. The ability to automatically adjust for machine deflection and material properties significantly improves efficiency, part quality, and overall productivity, making crowning an indispensable feature of modern press brakes.
